Zebron进样口衬管
Zebron PLUS 衬管
Zebron PLUS 气相色谱衬管针对痕量和活性化合物分析进行了优化，经过独特的化学灭活处理，使气相色谱进样口衬管具有极高的惰性。
Zebron Essential 衬管
Zebron Essential 衬管经过气相沉积的去活过程，从而得到非常适合常规分析的薄膜衬管。
保护并延长气相色谱柱的使用寿命
为什么使用预装衬管？
尽管自组装衬管的前期成本看起来很有吸引力，但由此产生的拖尾或不可重复性的峰值所造成的时间和头痛可能相当大！自组装的羊毛纤维在安装过程中通常会断裂，衬管上的大多现有去活部分也可能被划伤或损坏。预包装的 Zebron PLUS 衬管在石英棉已经就位的情况下进行去活过程，以确保在组装过程中形成的大多活性位点都不会暴露出来。
去活可保护您的样品

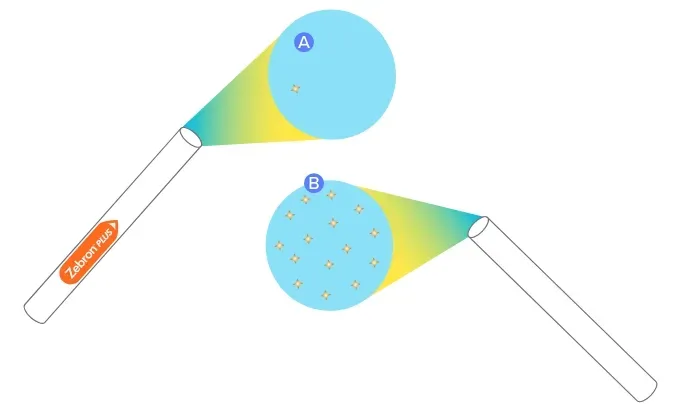

查看差异：Zebron PLUS 与传统去活
Zebron PLUS 气相色谱进样口衬管经过独特的去活过程，形成显著的惰性途径，可防止活性化合物的样品吸附和降解。
A： Zebron PLUS 去活
每批 Zebron PLUS 衬管均采用一层厚厚的气相沉积去活涂层制造，以实现高惰性。然后使用 EPA 方法 8081 和 8270 对它们的活性进行测试，以确保尽可能高水平的样品保护。
B：传统去活
传统上，衬管仅用薄的去活层进行钝化，有时不做钝化，这会使您的分析物面临吸附或降解的风险！

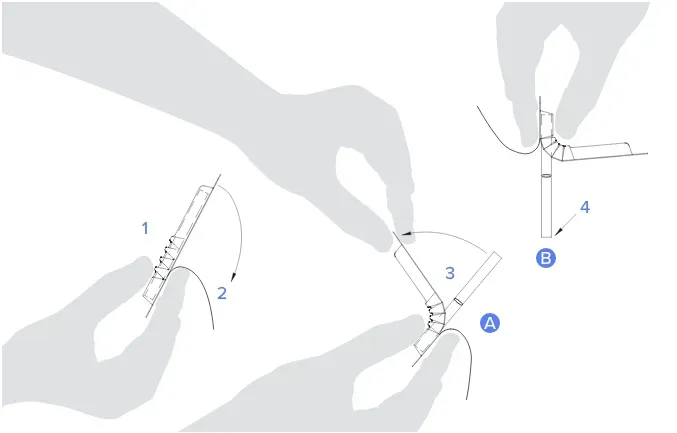

简单、免接触安装
- 极高惰性的 GC 进样口衬管，可提供良好的样品保护
- 易于安装的非接触式包装可让您保护自己免受割伤
- 消除安装过程中可能发生的污染
A：预装的 O 形圈可节省步骤
B：非接触式安装可防止污染
衬管几何形状提高性能
衬管的几何形状是指衬管的类型和形状。每个几何结构都对应特定的样品或进样类型。使用下表确定样品的几何形状。
| 进样类型 | 主要挑战 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Split | Splitless | Direct |
Trace Analysis |
Active Compounds |
Concentrated Samples |
Dirty Samples |
Gaseous Samples |
Wide Boiling Point Range |
General Purpose |
|
| Straight |
|
|
|
|
|
|
||||
| Straight Z-Liner™ |
|
|
|
|
||||||
| Single Taper |
|
|
|
|
||||||
| Single Taper with Wool |
|
|
|
|
|
|
||||
| Single Taper Z-Liner |
|
|
|
|
|
|||||
| Direct Connect |
|
|
|
|
||||||
| Single Baffle |
|
|
|
|
||||||
保护并延长 GC 仪器的使用寿命

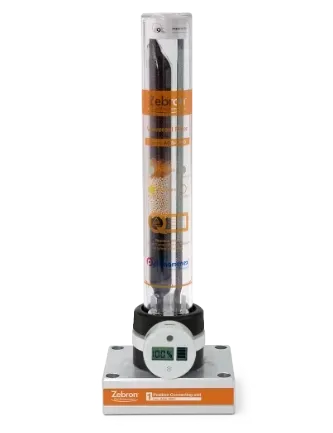

插入式 GC 和 LC-MS 气体过滤器
- 易于使用
- 双过滤器外壳可防止扩散并提高安全性
- 难以置信的高容量
- 确保高气体纯度（纯度 99.9999%）

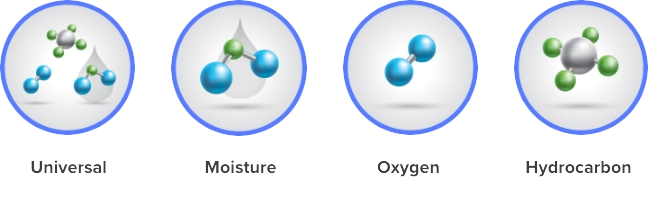

- 4种过滤器类型

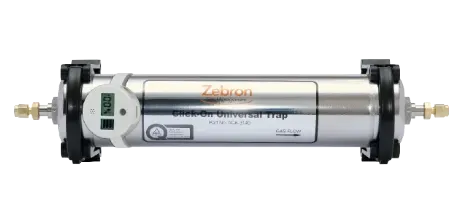

卡入式 GC 气体捕集阱
- 易于使用、卡入式 GC 气体捕集阱
- 一次为多台 GC 仪器提供服务
- 难以置信的高容量
- 确保高气体纯度（纯度 99.9999%）

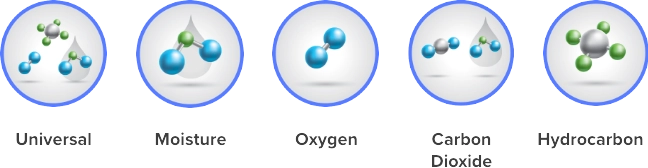

- 5种陷阱类型
产品记录：
共找到 140 条记录
| 产品货号 | 产品名称 | 产品描述 |
|---|---|---|
| AG1-0A03-05 | Zebron™ Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG2-0A00-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Straight |
| AG0-4657 | Liner for Agilent (4 mm ID x 78.5 mm L x 6.3 mm OD) | Splitless, Single Taper w/ Wool |
| AG1-2A10-25 | Zebron™ Liner for Perkin Elmer | 4mm ID Single Taper |
| AG2-2A00-05 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Straight |
| AG1-2A10-05 | Zebron™ Liner for Perkin Elmer | 4mm ID Single Taper |
| AG1-2A03-05 | Zebron™ Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG1-4B03-25 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Straight Z-Liner™ |
| AG0-7516 | GC Liner for HP, S/SL, 1-Taper | 4mm ID x 78.5mm L x 6.45mm OD |
| AG2-0A03-25 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG0-8669 | GC Liner for Thermo, Split, Straight | 5mm ID x 105mm L x 8mm OD |
| AG1-1F06-05 | Zebron™ Liner for Agilent PTV | 1.8mm ID Straight Single Baffle |
| AG0-4675 | Liner for Varian 1093/1094 (0.5mm ID x 54mm L x 4.6mm OD) | SPI (0.25mm), Straight |
| AG0-4658 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Splitless, Single Taper w/Wool |
| AG1-0A10-01 | Zebron Liner for Agilent & Thermo | 4mm ID Single Taper, EA |
| AG0-7515-S | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool, FocusLiner® (SAMPLE) |
| AG0-4673 | Liner for Varian 1075/77 (2mm ID x 74mm L x 6.3mm OD) | Split/Splitless, Straight |
| AG0-4647 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Cup Splitter |
| AG0-7853 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Cup Splitter w/Wool |
| AG2-3B03-25 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Straight Z-Liner™ |
| AG2-0A11-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom |
| AG0-4651 | GC Liner for HP, Splitless, Straight | 4mm ID x 78.5mm L x 6.3mm OD |
| AG2-0A11-25 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom |
| AG0-4681 | Liner for PerkinElmer® (4mmID x 92mmL x 6.2mmOD) | Split/Splitless, Single Taper w/Wool, FocusLiner® |
| AG2-4B03-25 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Straight Z-Liner™ |
| AG0-7863 | GC Liner for Thermo 8000,S/SL,1-Taper,w/W | 5mm ID x 105mm L x 8mm OD |
| AG1-0A50-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Direct Connect |
| AG2-0A13-01 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Z-Liner™ |
| AG0-7852 | Liner for Thermo (5mm ID x 105mm L x 8mm OD) | Split/Splitless, Single Taper |
| AG2-3B13-01 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Single Taper Z-Liner™ |
| AG0-8662 | GC Liner for Shimadzu 17A, S/SL, w/Wool | 3.4mm ID x 95mm L x 5mm OD, FocusLiner® |
| AG2-2A03-01 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG0-4645 | Liner for Thermo (3mm ID x 105mm L x 8mm OD) | Splitless, Straight |
| AG0-8664 | GC Liner for Shimadzu 2010, S/SL, Tapered | 3.4mm ID x 95mm L x 5mm OD, FocusLiner® |
| AG2-0A13-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Z-Liner™ |
| AG1-4B10-05 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Single Taper |
| AG1-4B03-05 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Straight Z-Liner™ |
| AG2-0A13-25 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Z-Liner™ |
| AG1-2E03-01 | Zebron™ Liner for Perkin Elmer | 2mm ID Straight Z-Liner™ |
| AG0-7851 | Liner for Agilent (4 mm ID x 78.5 mm L x 6.3 mm OD), | Splitless, Direct Connect w/ Bottom Hole |
| AG2-2A10-05 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Single Taper |
| AG0-4649 | GC Liner for HP, Splitless, Straight | 2mm ID x 78.5mm L x 6.45mm OD |
| AG0-7850 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Splitless, Direct Connect w/Top Hole |
| AG0-9170 | Liner for Agilent (4mm IDx78.5mm Lx6.3mm OD) | Splitless, Single Taper w/ Wool, 25/pk |
| AG0-4680-S | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Single Taper w/Wool, FocusLiner® (SAMPLE) |
| AG1-4B00-05 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Straight |
| AG2-0A11-01 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom |
| AG1-0A13-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper Z-Liner™ |
| AG2-3B13-05 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Single Taper Z-Liner™ |
| AG0-7582 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool, FocusLiner® |
| AG1-2A00-25 | Zebron™ Liner for Perkin Elmer | 4mm ID Straight |
| AG1-0A13-05 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper Z-Liner™ |
| AG2-2A03-25 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG1-4B13-05 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Single Taper Z-Liner™ |
| AG2-2A10-25 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Single Taper |
| AG2-4B13-05 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Single Taper Z-Liner™ |
| AG2-2A13-05 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Single Taper Z-Liner™ |
| AG0-8499 | GC Liner for HP, Splitless, Single Taper w/Wool | 4mm ID x 78.5mm L x 6.3mm OD |
| AG2-2A03-05 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG0-8665 | GC Liner for Varian 1078/79, Straight | 0.5mm ID x 54mm L x 5mm OD |
| AG1-0A11-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom |
| AG1-3B13-25 | Zebron™ Liner for Shimadzu 17A | 3.4mm ID Single Taper Z-Liner™ |
| AG0-7639 | Liner for Perkin Elmer (4 mm ID x 92 mm L x 6.2 mm OD), | Split/Splitless, Straight w/ Wool, FocusLiner® |
| AG1-2A10-01 | Zebron™ Liner for Perkin Elmer | 4mm ID Single Taper |
| AG0-8668 | GC Liner for Varian 1078/79, Splitless, 1-Taper | 2mm ID x 54mm L x 5mm OD |
| AG0-7640 | Liner for Agilent® (4mm ID x 78.5mm L x 6.45mm OD) | Splitless, Single Taper |
| AG1-2A03-01 | Zebron™ Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG1-0A11-01 | Zebron Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom, EA |
| AG1-4B10-25 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Single Taper |
| AG2-2E03-01 | Zebron™ PLUS Liner for Perkin Elmer | 2mm ID Straight Z-Liner™ |
| AG0-8172 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Single Taper w/ fixed wool w/positioning bead |
| AG0-4648 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Cup Splitter |
| AG1-0A10-05 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper |
| AG1-0A50-05 | Zebron™ Liner for Agilent & Thermo | 4mm ID Direct Connect |
| AG0-4655 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool |
| AG0-8379 | GC Liner for HP, S/SL, w/Wool | 2.3mm ID x 78.5mm L x 6.3mm OD |
| AG2-4B10-05 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Single Taper |
| AG2-0A50-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Direct Connect |
| AG2-2E03-25 | Zebron™ PLUS Liner for Perkin Elmer | 2mm ID Straight Z-Liner™ |
| AG2-1F06-05 | Zebron™ PLUS Liner for Agilent PTV | 1.8mm ID Straight Single Baffle |
| AG0-8666 | GC Liner for Varian 1078/79, S/SL | 3.4mm ID x 54mm L x 5mm OD, FocusLiner® |
| AG0-8661 | GC Liner for Shimadzu 17A, S/SL, w/ midGN | 3.4mm ID x 95mm L x 5mm OD |
| AG1-4B13-25 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Single Taper Z-Liner™ |
| AG2-3B03-01 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Straight Z-Liner™ |
| AG2-2A00-01 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Straight |
| AG1-4B00-01 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Straight |
| AG1-1F06-25 | Zebron™ Liner for Agilent PTV | 1.8mm ID Straight Single Baffle |
| AG2-2A13-25 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Single Taper Z-Liner™ |
| AG2-0A03-01 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG2-3B03-05 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Straight Z-Liner™ |
| AG1-2E03-25 | Zebron™ Liner for Perkin Elmer | 2mm ID Straight Z-Liner™ |
| AG0-4682 | Liner for Shimadzu 14/15A/16 (3.4 mm ID x 99 mm L x 5 mm OD) | Split/Splitless, Single Taper w/ Wool, FocusLiner® |
| AG1-0A03-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG0-8653-S | GC Liner for HP, S/SL, w/ Wool | 4mm ID x 78.5mm L x 6.3mm OD (SAMPLE) |
| AG2-4B13-25 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Single Taper Z-Liner™ |
| AG2-3B13-25 | Zebron™ PLUS Liner for Shimadzu 17A | 3.4mm ID Single Taper Z-Liner™ |
| AG0-8673 | Liner for Thermo (5mm ID x 105mm L x 8mm OD) | Splitless, Straight w/Wool, FocusLiner® |
| AG0-9190 | GC Liner for Shimadzu 17A, S/SL, w/Wool | 3.4mm ID x 95mm L x 5mm OD, FocusLiner® |
| AG1-0A11-05 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper Wool on Bottom |
| AG2-4B13-01 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Single Taper Z-Liner™ |
| AG2-0A10-25 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper |
| AG2-2A13-01 | Zebron™ PLUS Liner for Perkin Elmer | 4mm ID Single Taper Z-Liner™ |
| AG2-0A10-01 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper |
| AG0-8658 | Liner for Perkin Elmer (2mmID x 86.2mmL x 4mmOD) | Large Volume Injection, Sintered Glass |
| AG1-3B13-05 | Zebron™ Liner for Shimadzu 17A | 3.4mm ID Single Taper Z-Liner™ |
| AG0-4660 | GC Liner for HP, Direct Liner | 1.5mm ID x 78.5mm L x 6.45mm OD |
| AG0-4680 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Single Taper w/Wool, FocusLiner® |
| AG0-4650 | Liner for Agilent® (2mm ID x 78.5mm L x 6.45mm OD) | Splitless, Straight |
| AG0-8173-S | GC Liner for HP, Dble G-Neck , Splitless | 4mm ID x 78.5mm L x 6.45mm OD (SAMPLE) |
| AG1-4B10-01 | Zebron™ Liner for Shimadzu 2010 | 3.4mm ID Single Taper |
| AG1-2A13-05 | Zebron™ Liner for Perkin Elmer | 4mm ID Single Taper Z-Liner™ |
| AG2-4B00-01 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Straight |
| AG2-4B00-05 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Straight |
| AG1-2A03-25 | Zebron™ Liner for Perkin Elmer | 4mm ID Straight Z-Liner™ |
| AG0-4683 | Liner for Shimadzu 17B (3.4mm ID x 95mm L x 5mm OD) | Split/Splitless, Single Taper w/Wool, FocusLiner® |
| AG0-4655-S | Liner for Agilent (4 mm ID x 78.5 mm L x 6.3mm OD) | 6.3 mm OD), Split/Splitless, Straight w/ Wool (SAMPLE) |
| AG0-4665 | Liner for PE (4 mm ID x 92 mm L x 6.2 mm OD), | Split/Splitless, Straight |
| AG2-0A03-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG1-3B03-05 | Zebron™ Liner for Shimadzu 17A | 3.4mm ID Straight Z-Liner™ |
| AG0-7515 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool, FocusLiner® |
| AG0-4656 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool |
| AG1-2A00-01 | Zebron™ Liner for Perkin Elmer | 4mm ID Straight |
| AG2-0A10-05 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Single Taper |
| AG2-0A50-01 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Direct Connect |
| AG0-8173 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Dual Taper |
| AG1-0A10-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Single Taper |
| AG1-0A03-01 | Zebron™ Liner for Agilent & Thermo | 4mm ID Straight Z-Liner™ |
| AG2-0A00-25 | Zebron™ PLUS Liner for Agilent & Thermo | 4mm ID Straight |
| AG0-7514 | Liner for Agilent® (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Single Taper w/Wool, FocusLiner® |
| AG0-8671 | Liner for Thermo (5mm ID x 105mm L x 8mm OD) | Splitless, Single Taper w/Wool, FocusLiner® |
| AG1-1F06-01 | Zebron™ Liner for Agilent PTV | 1.8mm ID Straight Single Baffle |
| AG1-2A13-01 | Zebron™ Liner for Perkin Elmer | 4mm ID Single Taper Z-Liner™ |
| AG2-4B03-05 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Straight Z-Liner™ |
| AG0-8654 | Liner for Agilent (4mm ID x 78.5mm L x 6.3mm OD) | Split/Splitless, Straight w/Wool |
| AG2-2E03-05 | Zebron™ PLUS Liner for Perkin Elmer | 2mm ID Straight Z-Liner™ |
| AG2-1F06-25 | Zebron™ PLUS Liner for Agilent PTV | 1.8mm ID Straight Single Baffle |
| AG2-4B10-25 | Zebron™ PLUS Liner for Shimadzu 2010 | 3.4mm ID Single Taper |
| AG0-8657 | Liner for Perkin Elmer (2mmID x 86.2mmL x 4mmOD) | Split/Splitless, Straight w/Wool, FocusLiner® |
| AG0-8672 | Liner for Thermo (3mm ID x 105mm L x 8mm OD) | Splitless, Single Taper |
| AG1-0A00-25 | Zebron™ Liner for Agilent & Thermo | 4mm ID Straight |
-
-
-
