- 手拧接头-集成扭矩限制技术
- 易操作
- 无死体积
- 绝大部分液相系统兼容

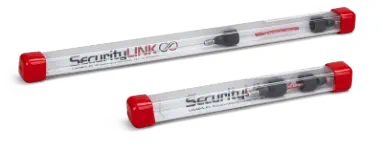

SecurityLINK柱连接器
尽可能减少或消除大多 HPLC 和 UHPLC 系统中的死体积可以得到更好的色谱图。通常色谱柱入口和出口的接头连接会导致死体积增加，从而导致柱效低于预期、峰拖尾或峰变形。SecurityLINK HPLC/UHPLC 接头采用集成或外部扭矩限制技术，可消除色谱柱接头处过度拧紧和拧紧不足的情况从而避免色谱柱损坏和分析结果不佳。
- 连接死体积为零，助力更好的HPLC/UPLC实验结果
- 扭矩限制技术可防止过度拧紧和拧紧不足
- 额定压力为 19,000 psi （1,310 bar）
提供两种形式产品：
- 适用于所有液相色谱应用的 SecurityLINK（集成扭矩限制技术）
- 适用于更精确和低流量的液相应用的 SecurityLINK ET
关于 SecurityLINK 技术
SecurityLINK LC 连接器采用扭矩限制技术，可简化系统与色谱柱的连接，同时确保正确密封并防止因过度拧紧而损坏色谱柱。
无论您选择带集成扭矩限制功能的标准连接器 （SecurityLINK） 还是带扭矩限制工具辅助装置的小尺寸连接器 （SecurityLINK ET）， LC 应用的可靠性和安全性。

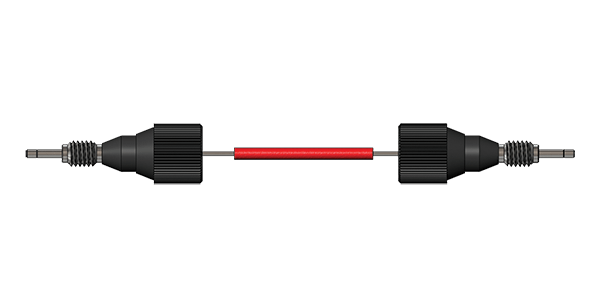

SecurityLINK
(无需额外工具)

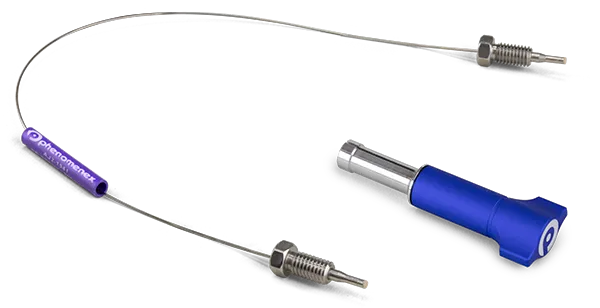

SecurityLINK ET
（高性价比，需额外免费扭矩工具）
- 兼容绝大部分HPLC/UPLC系统
- 优化高精度低流速应用
- 无死体积
- 使用所需空间小
- 额外扭矩工具操作简便

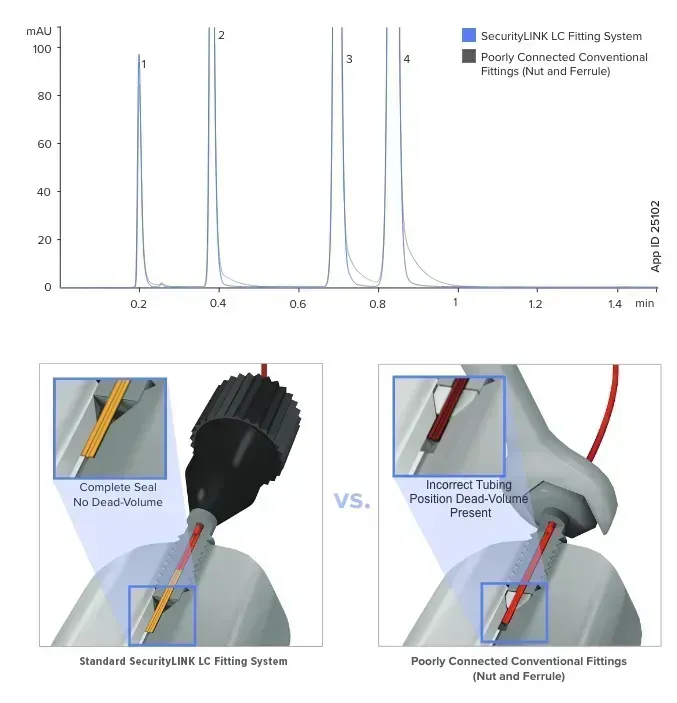

死体积差异
SecurityLINK 连接器与传统接头
接头连接不良通常是导致残留、谱带展宽和峰拖尾的原因。标准 SecurityLINK 和 SecurityLINK ET 接头每次都能提供零死体积连接。
色谱条件：
|
Column:
Luna™ Omega 1.6 µm C18
|
|
Dimension:
50 x 2.1 mm
|
|
Part No.:
00B-4742-AN
|
|
SecurityLINK Part No.:
AJ1-1421
|
|
Mobile Phase:
Water / Acetonitrile (35:65)
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
25 °C
|
|
Injection Volume:
0.2 µL
|
|
Detection:
UV @ 254 nm
|
|
Sample:
1. Uracil
2. Acetophenone 3. Toluene 4. Naphthalene |

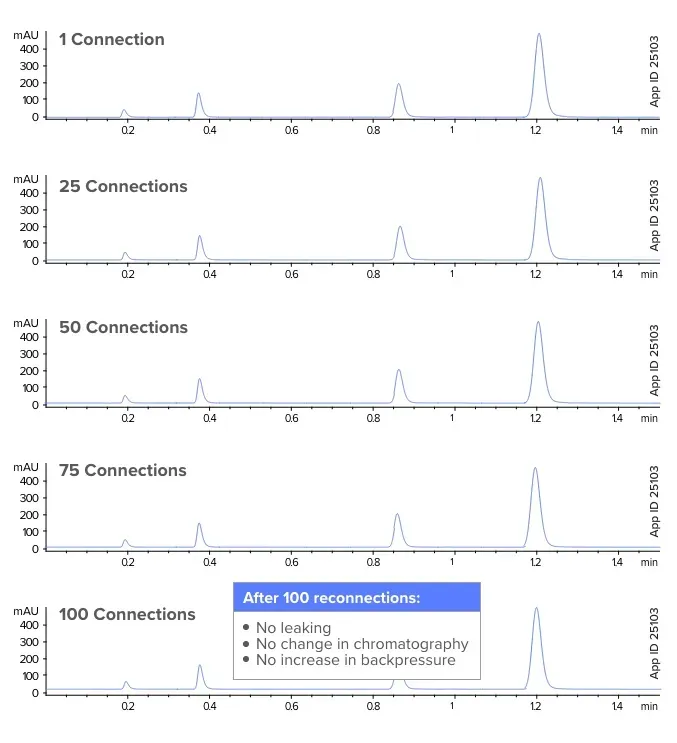

良好的稳定性和重现性
色谱柱性能
传统接头很多与不同色谱柱不兼容，因此容易因过度拧紧而造成色谱柱损坏，但 SecurityLINK不存在这种情况。将 SecurityLINK 液相色谱接头与亚 2 μm 核壳 UHPLC 色谱柱接上断开 100 次之后仍然可以轻松连接。
|
Column:
Kinetex® 1.3 μm C18
|
|
Dimension:
50 x 2.1 mm
|
|
SecurityLink Part No.:
AJ1-1421
|
|
Mobile Phase:
Water/Acetonitrile (50:50)
|
|
Flow Rate:
0.5 mL/min
|
|
Injection Volume:
0.2 µL
|
|
Temperature:
25 °C
|
|
Detection:
UV
|
|
Sample:
1. Uracil
2. Acetophenone 3. Toluene 4. Naphthalene |

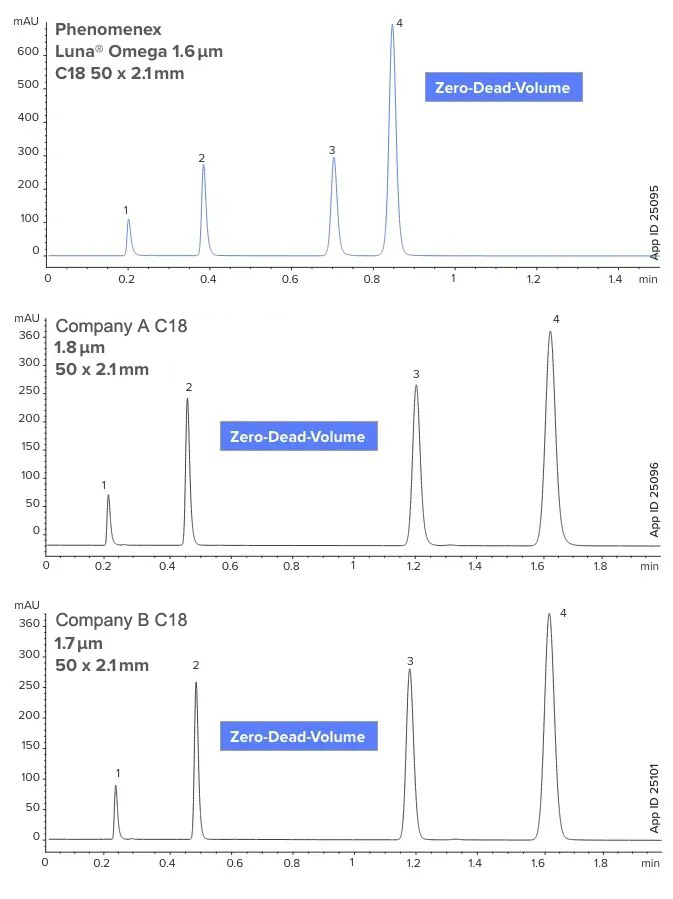

不同品牌色谱柱兼容性
使用 SecurityLINK 获得一致的结果
SecurityLINK 液相色谱接头可与市场大多数液相色谱柱和系统兼容。下图为 SecurityLINK接头与不同品牌同色谱柱连接情况图示。
所有列的条件：
|
Columns:
Luna Omega 1.6 μm C18
ACQUITY BEH 1.7 μm C18 Zorbax Eclipse Plus 1.8 μm C18 RRHD |
|
Dimension:
50 x 2.1 mm
|
|
SecurityLink Part No.:
AJ1-1421
|
|
Mobile Phase:
Water/Acetonitrile (50:50)
|
|
Flow Rate:
0.5 mL/min
|
|
Injection Volume:
0.2 µL
|
|
Temperature:
25 °C
|
|
Detection:
UV
|
|
Sample:
1. Uracil
2. Acetophenone 3. Toluene 4. Naphthalene |

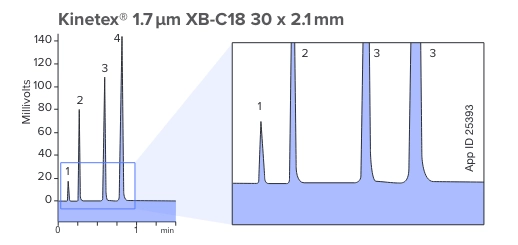

SecurityLINK PEEKsil UHPLC 手拧接头系统连接
| Peak | Analyte | Time | Area | K Factor | Width | Eff. | Asym. |
|---|---|---|---|---|---|---|---|
| 1 | Uracil | 0.13 | 13 | 0.000 | 0.011 | 802 | 1.56 |
| 2 | Acetophenone | 0.26 | 64 | 1.085 | 0.012 | 2852 | 1.46 |
| 3 | Toluene | 0.59 | 136 | 3.620 | 0.019 | 5273 | 1.16 |
| 4 | Naphthalene | 0.80 | 243 | 5.326 | 0.026 | 5433 | 1.12 |

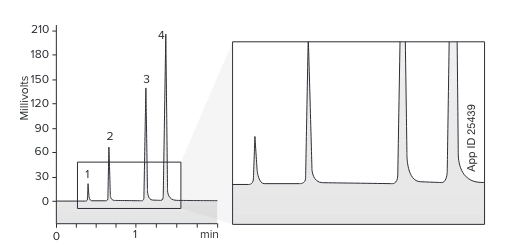

传统螺母和密封垫圈 管件系统连接
| Peak | Analyte | Time | Area | K Factor | Width | Eff. | Asym. |
|---|---|---|---|---|---|---|---|
| 1 | Uracil | 0.40 | 19 | 0.000 | 0.015 | 7380 | 1.82 |
| 2 | Acetophenone | 0.60 | 68 | 0.633 | 0.016 | 13850 | 1.68 |
| 3 | Toluene | 1.11 | 188 | 1.753 | 0.021 | 20153 | 1.44 |
| 4 | Naphthalene | 1.35 | 320 | 2.359 | 0.024 | 21896 | 1.31 |
所有样品的条件相同：
|
Column:
Kinetex 1.7 µm XB-C18
|
|
Dimension:
30 x 2.1 mm
|
|
Part No.:
00A-4496-AN
|
|
SecurityLink Part No.:
AJ1-2441
|
|
PEEKsil Part No.:
AT0-8896 (Tubing)AQ0-8503 (Fitting) |
|
Mobile Phase:
Acetonitrile/Water (50:50)
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
Ambient
|
|
System:
Agilent® 1260 Infinity
|
|
Column:
Kinetex 1.7 µm XB-C18
|
|
Dimension:
100 x 2.1 mm
|
|
Part No.:
00D-4496-AN
|
|
SecurityLink Part No.:
AJ1-2441
|
|
PEEKsil Part No.:
AT0-8896 (Tubing)AQ0-8503 (Fitting) |
|
Mobile Phase:
Acetonitrile/Water (65:35)
|
|
Flow Rate:
0.5 mL/min
|
|
Temperature:
Ambient
|
|
System:
Agilent® 1260 Infinity
|
产品记录：
共找到 90 条记录
| 产品货号 | 产品名称 | 产品描述 |
|---|---|---|
| AJ2-14A1 | SecurityLINK ET SS 100µm ID | 1000mm Length with 10-32 Fittings |
| AJ1-3361 | SecurityLINK PEEK-Lined SS 75µm ID | 350mm Length with 10-32 Fittings |
| AJ1-1521 | SecurityLINK SS 125µm ID | 150mm Length with 10-32 Fittings |
| AJ1-2271 | SecurityLINK PEEKsil 50µm ID | 500mm Length with 10-32 Fittings |
| AJ1-2174 | SecurityLINK PEEKsil 25µm ID | 500mm Length with Single 10-32 Fitting |
| AJ1-2411 | SecurityLINK PEEKsil 100µm ID | 100mm Length with 10-32 Fittings |
| AJ1-3241 | SecurityLINK PEEK-Lined SS 50µm ID | 250mm Length with 10-32 Fittings |
| AJ1-2471 | SecurityLINK PEEKsil 100µm ID | 500mm Length with 10-32 Fittings |
| AJ1-1621 | SecurityLINK SS 254µm ID | 150mm Length with 10-32 Fittings |
| AJ1-2224 | SecurityLINK PEEKsil 50µm ID | 150mm Length with single 10-32 Fitting |
| AJ1-2121 | SecurityLINK PEEKsil 25µm ID | 150mm Length with 10-32 Fittings |
| AJ1-1441 | SecurityLINK SS 100µm ID | 250mm Length witn 10-32 Fittings |
| AJ2-15A1 | SecurityLINK ET SS 125µm ID | 1000mm Length with 10-32 Fittings |
| AJ1-2211 | SecurityLINK PEEKsil 50µm ID | 100mm Length with 10-32 Fittings |
| AJ1-1471 | SecurityLINK SS 100µm ID | 500mm Length with 10-32 Fittings |
| AJ2-1581 | SecurityLINK ET SS 125µm ID | 600mm Length with 10-32 Fittings |
| AJ1-1421 | SecurityLINK SS 100µm ID | 150mm Length with 10-32 Fittings |
| AJ2-1541 | SecurityLINK ET SS 125µm ID | 250mm Length with 10-32 Fittings |
| AJ2-1661 | SecurityLINK ET SS 254µm ID | 350mm Length with 10-32 Fittings |
| AJ1-3421 | SecurityLINK PEEK-Lined SS 100µm ID | 150mm Length with 10-32 Fittings |
| AJ1-2241 | SecurityLINK PEEKsil 50µm ID | 250mm Length with 10-32 Fittings |
| AJ2-1481 | SecurityLINK ET SS 100µm ID | 600mm Length with 10-32 Fittings |
| AJ2-22A4 | SecurityLINK ET PEEKsil 50µm ID | 1000mm Length with single 10-32 Fitting |
| AJ1-3381 | SecurityLINK PEEK-Lined SS 75µm ID | 600mm Length with 10-32 Fittings |
| AJ2-2224 | SecurityLINK ET PEEKsil 50µm ID | 150mm Length with single 10-32 Fitting |
| AJ1-1561 | SecurityLINK SS 125µm ID | 350mm Length with 10-32 Fittings |
| AJ1-24A1 | SecurityLINK PEEKsil 100µm ID | 1000mm Length with 10-32 Fittings |
| AJ2-1561 | SecurityLINK ET SS 125µm ID | 350mm Length with 10-32 Fittings |
| AJ1-1481 | SecurityLINK SS 100µm ID | 600mm Length with 10-32 Fittings |
| AJ2-1621 | SecurityLINK ET SS 254µm ID | 150mm Length with 10-32 Fittings |
| AJ2-1521 | SecurityLINK ET SS 125µm ID | 150mm Length with 10-32 Fittings |
| AJ1-1671 | SecurityLINK SS 254µm ID | 500mm Length with 10-32 Fittings |
| AJ1-1661 | SecurityLINK SS 254µm ID | 350mm Length with 10-32 Fittings |
| AJ1-2341 | SecurityLINK PEEKsil 75µm ID | 250mm Length with 10-32 Fittings |
| AJ2-2411 | SecurityLINK ET PEEKsil 100µm ID | 100mm Length with 10-32 Fittings |
| AJ1-3371 | SecurityLINK PEEK-Lined SS 75µm ID | 500mm Length with 10-32 Fittings |
| AJ1-1571 | SecurityLINK SS 125µm ID | 500mm Length with 10-32 Fittings |
| AJ1-2221 | SecurityLINK PEEKsil 50µm ID | 150mm Length with 10-32 Fittings |
| AJ1-2141 | SecurityLINK PEEKsil 25µm ID | 250mm Length with 10-32 Fittings |
| AJ1-3261 | SecurityLINK PEEK-Lined SS 50µm ID | 350mm Length with 10-32 Fittings |
| AJ1-3471 | SecurityLINK PEEK-Lined SS 100µm ID | 500mm Length with 10-32 Fittings |
| AJ1-2321 | SecurityLINK PEEKsil 75µm ID | 150mm Length with 10-32 Fittings |
| AJ1-2274 | SecurityLINK PEEKsil 50µm ID | 500mm Length with single 10-32 Fitting |
| AJ1-3171 | SecurityLINK PEEK-Lined SS 25µm ID | 500mm Length with 10-32 Fittings |
| AJ1-3481 | SecurityLINK PEEK-Lined SS 100µm ID | 600mm Length with 10-32 Fittings |
| AJ1-2371 | SecurityLINK PEEKsil 75µm ID | 500mm Length with 10-32 Fittings |
| AJ1-2294 | SecurityLINK PEEKsil 50µm ID | 750mm Length with single 10-32 Fitting |
| AJ1-1414 | SecurityLINK SS 100µm ID | 100mm Length with Single 10-32 Fitting |
| AJ1-2124 | SecurityLINK PEEKsil 25µm ID | 150mm Length with Single 10-32 Fitting |
| AJ1-2231 | SecurityLINK PEEKsil 50µm ID | 200mm Length with 10-32 Fittings |
| AJ2-1671 | SecurityLINK ET SS 254µm ID | 500mm Length with 10-32 Fittings |
| AJ1-2441 | SecurityLINK PEEKsil 100µm ID | 250mm Length with 10-32 Fittings |
| AJ1-2251 | SecurityLINK PEEKsil 50µm ID | 300mm Length with 10-32 Fittings |
| AJ1-1581 | SecurityLINK SS 125µm ID | 600mm Length with 10-32 Fittings |
| AJ2-1411 | SecurityLINK ET SS 100µm ID | 100mm Length with 10-32 Fittings |
| AJ1-3461 | SecurityLINK PEEK-Lined SS 100µm ID | 350mm Length with 10-32 Fittings |
| AJ2-2421 | SecurityLINK ET PEEKsil 100µm ID | 150mm Length with 10-32 Fittings |
| AJ2-2471 | SecurityLINK ET PEEKsil 100µm ID | 500mm Length with 10-32 Fittings |
| AJ1-22A4 | SecurityLINK PEEKsil 50µm ID | 1000mm Length with single 10-32 Fitting |
| AJ1-22A1 | SecurityLINK PEEKsil 50µm ID | 1000mm Length with 10-32 Fittings |
| AJ2-1641 | SecurityLINK ET SS 254µm ID | 250mm Length with 10-32 Fittings |
| AJ1-2151 | SecurityLINK PEEKsil 25µm ID | 300mm Length with 10-32 Fittings |
| AJ1-23A1 | SecurityLINK PEEKsil 75µm ID | 1000mm Length with 10-32 Fittings |
| AJ2-1571 | SecurityLINK ET SS 125µm ID | 500mm Length with 10-32 Fittings |
| AJ2-1441 | SecurityLINK ET SS 100µm ID | 250mm Length with 10-32 Fittings |
| AJ1-1411 | SecurityLINK SS 100µm ID | 100mm Length with 10-32 Fittings |
| AJ1-2421 | SecurityLINK PEEKsil 100µm ID | 150mm Length with 10-32 Fittings |
| AJ2-24A1 | SecurityLINK ET PEEKsil 100µm ID | 1000mm Length with 10-32 Fittings |
| AJ1-1611 | SecurityLINK SS 254µm ID | 100mm Length with 10-32 Fittings, Ea |
| AJ1-2171 | SecurityLINK PEEKsil 25µm ID | 500mm Length with 10-32 Fittings |
| AJ2-2461 | SecurityLINK ET PEEKsil 100µm ID | 350mm Length with 10-32 Fittings |
| AJ1-1681 | SecurityLINK SS 254µm ID | 600mm Length with 10-32 Fittings |
| AJ1-3221 | SecurityLINK PEEK-Lined SS 50µm ID | 150mm Length with 10-32 Fittings |
| AJ2-1471 | SecurityLINK ET SS 100µm ID | 500mm Length with 10-32 Fittings |
| AJ1-1541 | SecurityLINK SS 125µm ID | 250mm Length with 10-32 Fittings |
| AJ2-1421 | SecurityLINK ET SS 100µm ID | 150mm Length with 10-32 Fittings |
| AJ2-2441 | SecurityLINK ET PEEKsil 100µm ID | 250mm Length with 10-32 Fittings |
| AJ1-3341 | SecurityLINK PEEK-Lined SS 75µm ID | 250mm Length with 10-32 Fittings |
| AJ2-9000 | SecurityLINK ET | Tightening Tool with holder |
| AJ1-3161 | SecurityLINK PEEK-Lined SS 25µm ID | 350mm Length with 10-32 Fittings |
| AJ1-3441 | SecurityLINK PEEK-Lined SS 100µm ID | 250mm Length with 10-32 Fittings |
| AJ1-2194 | SecurityLINK PEEKsil 25µm ID | 750mm Length with Single 10-32 Fitting |
| AJ2-1461 | SecurityLINK ET SS 100µm ID | 350mm Length with 10-32 Fittings |
| AJ1-3141 | SecurityLINK PEEK-Lined SS 25µm ID | 250mm Length with 10-32 Fittings |
| AJ1-2191 | SecurityLINK PEEKsil 25µm ID | 750mm Length with 10-32 Fittings |
| AJ1-3281 | SecurityLINK PEEK-Lined SS 50µm ID | 600mm Length with 10-32 Fittings |
| AJ1-2291 | SecurityLINK PEEKsil 50µm ID | 750mm Length with 10-32 Fittings |
| AJ1-2111 | SecurityLINK PEEKsil 25µm ID | 100mm Length with 10-32 Fittings |
| AJ1-1641 | SecurityLINK SS 254µm ID | 250mm Length with 10-32 Fittings |
| AJ1-1461 | SecurityLINK SS 100µm ID | 350mm Length with 10-32 Fittings |
-
-
-
